Exit button, Heavy Duty Mushroom, Green, IP66, Vandalproof, Architrave Plate

CSD-WES2440
AVAILABLE TO ORDER
Exit button, Heavy Duty Mushroom, Green, IP66, Vandalproof, Architrave Plate
Warehouse Status
Seven Hills - NSW
IN STOCK
Waterloo - NSW
AVAILABLE TO ORDER
Fyshwick - ACT
AVAILABLE TO ORDER
Loganholme - QLD
AVAILABLE TO ORDER
Dudley Park - SA
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
IN STOCK
Mulgrave - VIC
AVAILABLE TO ORDER
Balcatta - WA
AVAILABLE TO ORDER
Canning Vale - WA
AVAILABLE TO ORDER

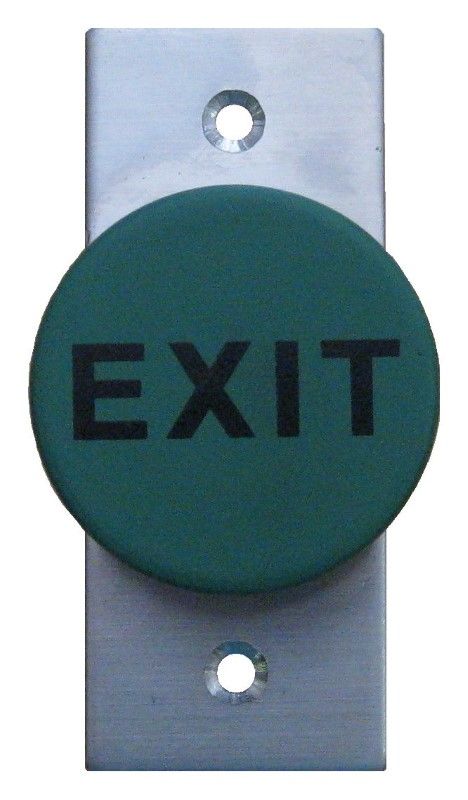

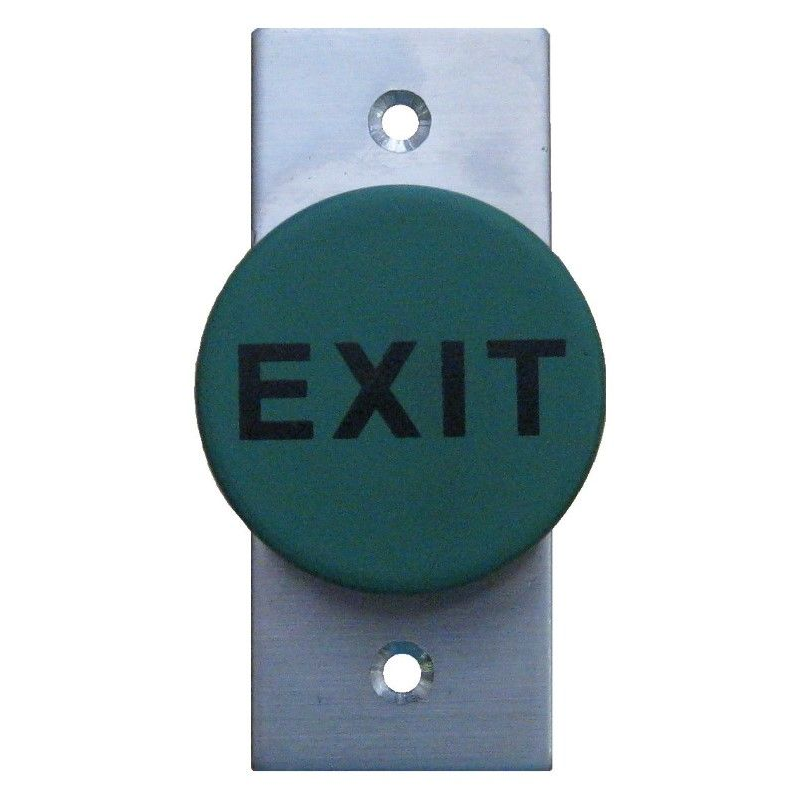

The WEL2440 Heavy Duty Mushroom Exit Button is designed to be installed in an application where it is at high risk of being subject to vandalism or tampering, as in the case of a public area or even prisons. The weatherproof feature allows it to be able to withstand inclement weather such as rain, snow and dust.

  • Isolated 1 x NO and 1 x NC contact - 4 x flying wires
  • Current/voltage max: 10A/250VAC
  • Contact resistance max: 20m?
  • Dimensions: 75 x 30 x 30mm

  • All metal construction, heavy duty and vandal proof
  • Big zinc alloy mushroom head (40mm in diameter) - easy to press
  • Epoxy sealed; IP rating 66 - weather proof
  • Isolated NO and NC contacts
