Hikvision 2nd Gen. Intercom, Door Station Card Reader Module, Mifare 13.56MHz

HIK-KD-M
AVAILABLE TO ORDER
Hikvision 2nd Gen. Intercom, Door Station Card Reader Module, Mifare 13.56MHz
Warehouse Status
Seven Hills - NSW
AVAILABLE TO ORDER
Waterloo - NSW
AVAILABLE TO ORDER
Fyshwick - ACT
AVAILABLE TO ORDER
Loganholme - QLD
AVAILABLE TO ORDER
Dudley Park - SA
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
AVAILABLE TO ORDER
Mulgrave - VIC
AVAILABLE TO ORDER
Balcatta - WA
AVAILABLE TO ORDER
Canning Vale - WA
AVAILABLE TO ORDER

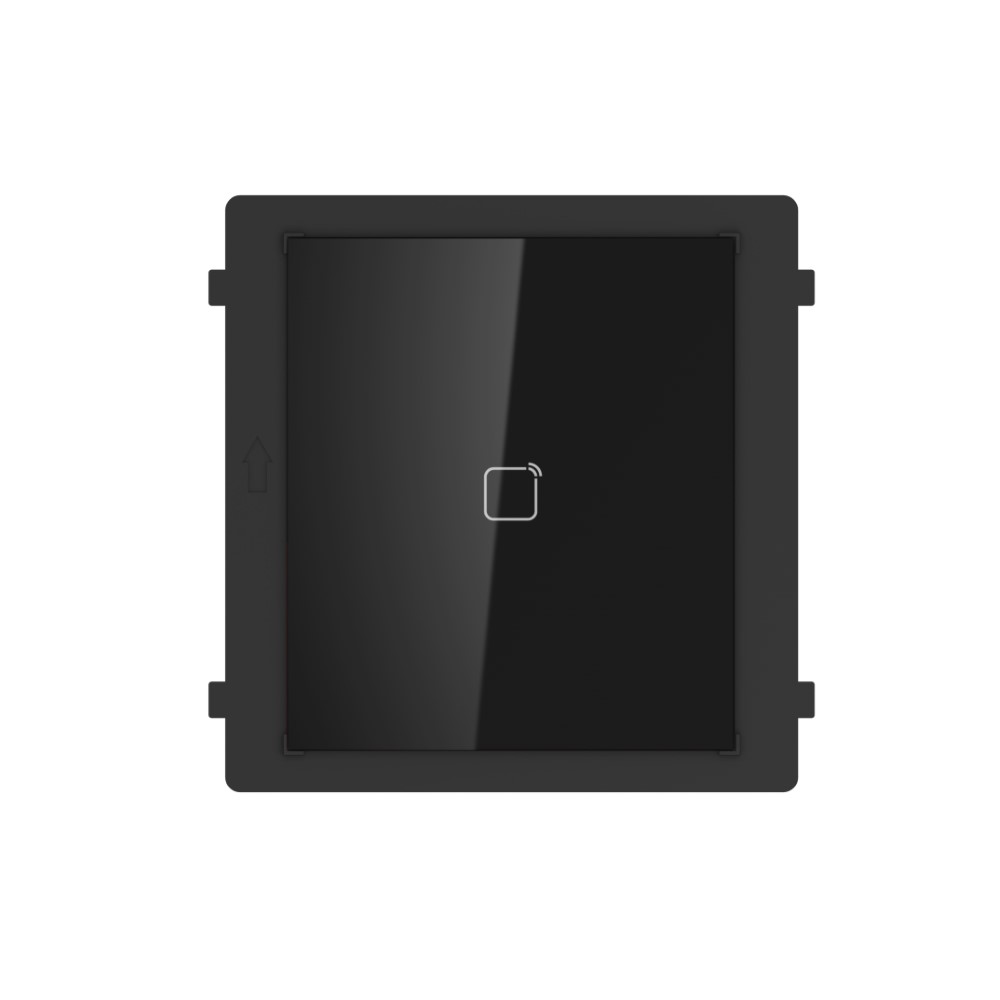

The Hikvision HIK-KD-M is a card reader module that is designed to suit the 2nd Generation range of IP intercoms.

  • IP65 rating
  • Processor: embedded MCU processor
  • Module-connecting interfaces: 2 (1 input, 1 output)
  • Power consumption: less than 2W
  • Power input and output: 12 VDC
  • Operating temperature: -40 to 60 degrees celsius
  • Dimensions: 98.5 x 100 x 33.7mm

  • Supports unlock the door via swiping cards
  • Supports issuing cards
  • Backlight compensation
  • Easy to expand
