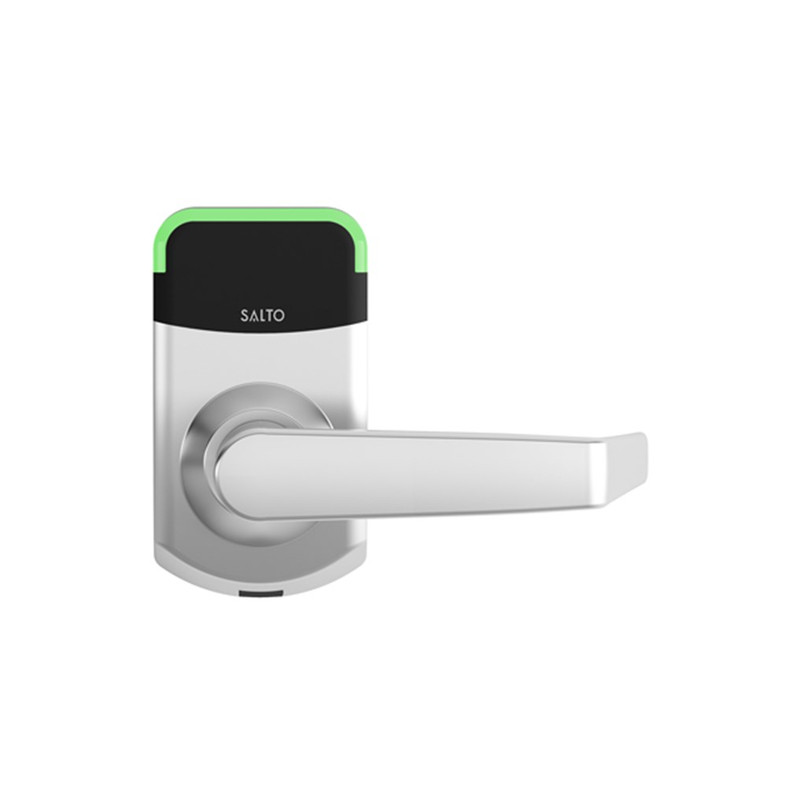

Salto XS4 Mini, ANSI, Satin Chrome, N Lever, 60mm Backset, Cylindrical Latch, 8mm Spindle

SS-CM250N60CSB3
AVAILABLE TO ORDER
Salto XS4 Mini, ANSI, Satin Chrome, N Lever, 60mm Backset, Cylindrical Latch, 8mm Spindle
Warehouse Status
Seven Hills - NSW
AVAILABLE TO ORDER
Loganholme - QLD
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
AVAILABLE TO ORDER

The Salto XS4 Mini ANSI for cylindrical or tubular latches has been designed to meet ANSI A156.2 Grade 1 or 2 cylindrical latch requirements. Easy, simple and quick way to replace existing traditional knob sets and upgrade them with a state of the art electronic access control system with Salto's cartridge cylindrical latch.

The perfect solution to integrate with Inner Range's Integriti system.

  • Covers door thicknesses: from 40mm up to 105mm (1-9 /16" to 4-1 /8")
  • Dimensions: 124.5mm x 68mm x 27mm (4-57/64" x 2-43/64" x 1-1 /16")
  • Non-handed electronic lock
  • Clutch mechanism escutcheon: when unlocked, handle moves freely
  • Handle rotation: 54 degrees
  • To be used in combination with XS4 Mini ANSI's cylindrical latch only

  • Simple installation, using just two screws when installing on new or existing ANSI cylindrical latch door standards
  • Clear, dual colour optical signalling indicates access authorisation - Acoustic signal optional
  • High security via high resistance, hardened anti-drill protection
  • Concealed fixing screws for greater security and improved aesthetics
  • For indoor applications: quick and easy install makes it ideal for retrofits
