Planet Media Converter Chassis with Redundant Power Option, 15 Slot, 19 Inch

PLA-MC-1500R48
AVAILABLE TO ORDER
Planet Media Converter Chassis with Redundant Power Option, 15 Slot, 19 Inch
Warehouse Status
Seven Hills - NSW
AVAILABLE TO ORDER
Loganholme - QLD
AVAILABLE TO ORDER
Dudley Park - SA
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
AVAILABLE TO ORDER
Balcatta - WA
AVAILABLE TO ORDER

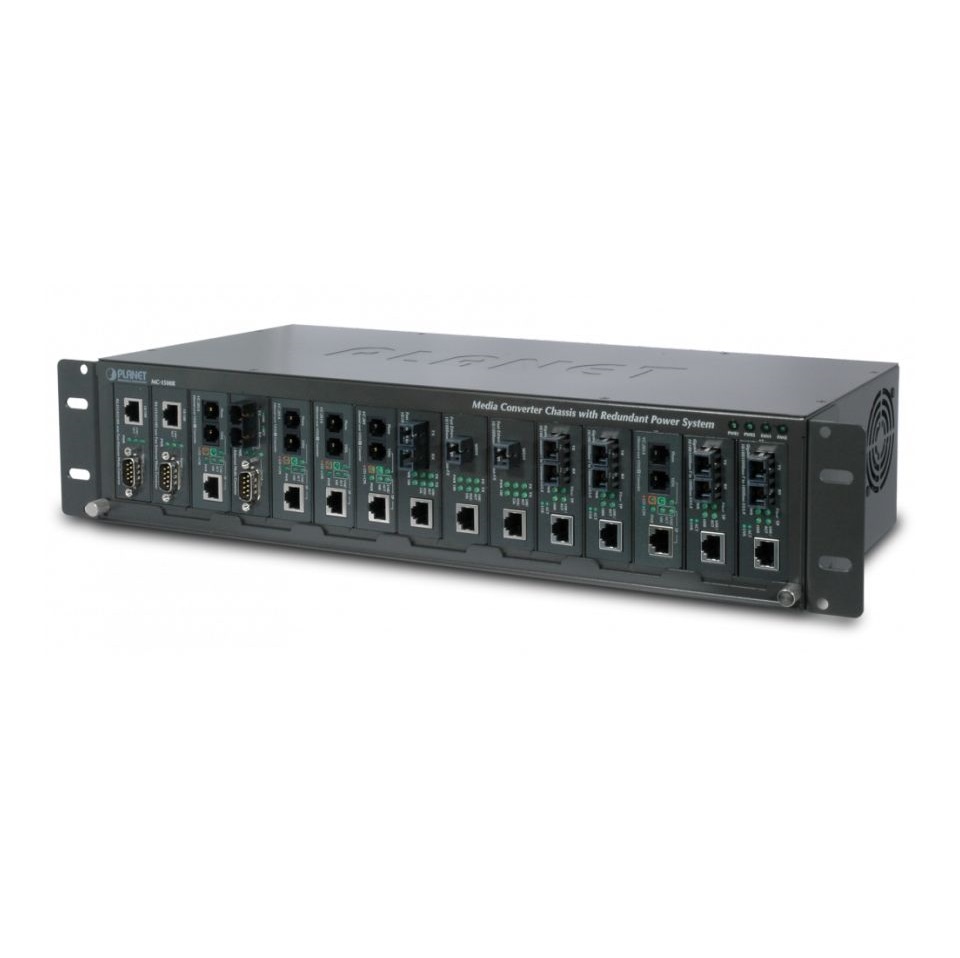

The Planet PLA-MC-1500R48 offers both flexibility in installation and a cost-effective scalable solution. With an independent power supply on each slot of the PLA-MC-1500R48, any converter is hot-swappable without causing an interruption to other converters. The media converters and power modules can be plugged and played anytime.

  • 15 open slot
  • 2x fans
  • Dimensions: 438 x 200 x 103mm
  • Weight: 4.2kg
  • DC -48V, 2A
  • 6W/20.46 BTU (system loading)
  • 96W/327 BTU (full loading)

  • High quality 19" rack-mountable chassis installation
  • Supplies the converters and power modules to be plugged and played
  • Supports up to 15 hot-swappable media converters
  • Two built-in fans for hardware cooling
  • Power protection
